QPSK Implementation

Requirement

• QPSK
• BER Calculation

Transmitter Side

steps

1. Generate random bits

2. Modulate into complex contellation

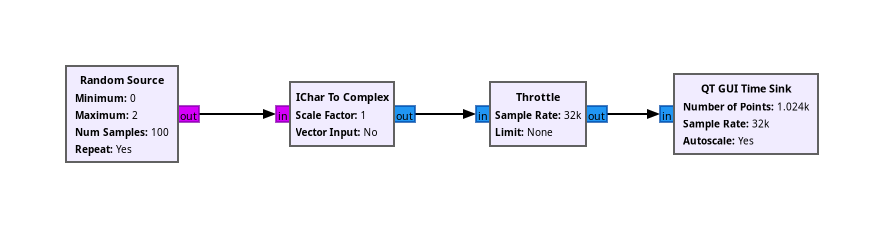

Genrate Random Bits

graph LR

Random_source --> B(0s and 1s)

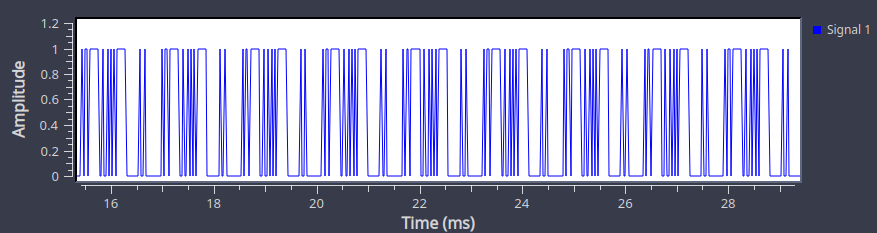

• The random source generates random data

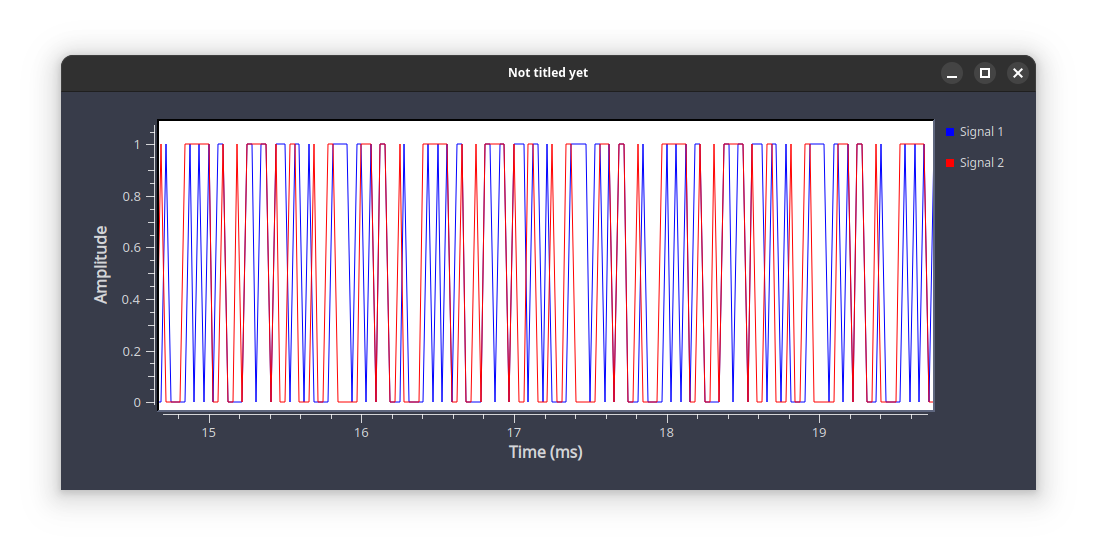

While we only expect 0's and 1's from the random source but we can actually have a complex signal comming from the random source (idk why)

maybe the representation goes like this

0 -> Real = 0 , Img = 0
1 -> Real = 1 , Img = 1
or
0 -> Real = 0 , Img = 1
1 -> Real = 1 , Img = 0

Modulate into complex constellation

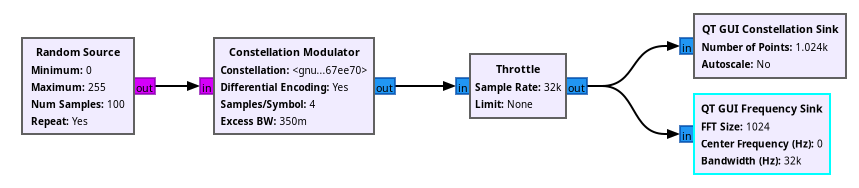

To modulate the Generated bits to complex contellation here Constellation Moulator Block is used

• The constellation modulator expects packed bytes,
• constellation modulator uses a root raised cosine (RRC) , which is uses pulse shaping filter to control the bandwidth(reduce) that param is called excess bandwidth.

Constellation Modulator
	Constellaton: bpsk,qpsk,etc here qpsk
	Differential Encoding: true,false
	Samples/Symbol: 4
	excess BW: 350m

samp_rate: 32k
excess_bw: 350m
rrc_taps: firdes.root_raised_cosine(nfilts, nfilts, 1.0/float(sps), 0.35, 11*sps*nfilts)
nfilts: 32
constellation object:
  id: qpsk
  symbol map: 0,1,2,3
  constellation point: [0.707+0.707j, -0.707+0.707j, -0.707-0.707j, 0.707-0.707j]
  rotational_sym: 4

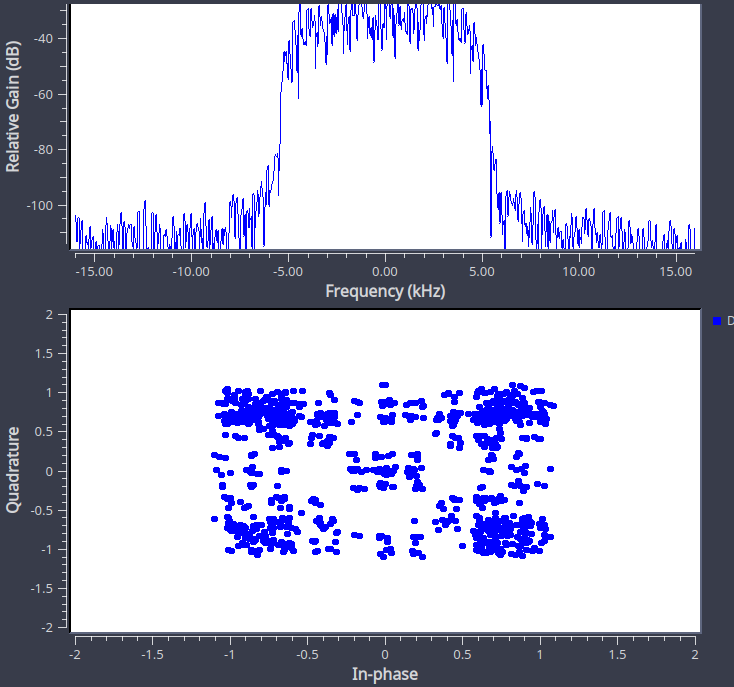

The signal looks like it has ISI but it can be reduced using timing recovery , and another RRC filter can be used at the receiver to minimize ISI.

![[transmitter.pdf]]

Receiver Side

graph LR
Received_signal --> polyphaase_clock_sync --> Linear_Equalizer --> Constellation_Decoder

![[receiver.pdf]]
